Electrical transformer working principle

                                                                           Transformers

What is Transformers?

          An electrical transformer is a static device that transfers electrical energy between two or more circuits through electromagnetic induction, without changing the frequency. It is used to step up or step down voltage levels in power transmission and distribution systems, improving efficiency and safety.

Components of a Transformer

1. Primary Winding

• The coil connected to the input AC voltage source.
• It generates a changing magnetic field when AC flows through it.

2. Secondary Winding

• The coil where the output voltage is induced.
• The number of turns in this winding determines whether the transformer steps up or steps down the voltage.

3. Magnetic Core

• Made of laminated iron or ferrite to reduce eddy current losses.
• Provides a low-reluctance path for magnetic flux between the primary and secondary windings.

4. Insulation Material

• Prevents short circuits between windings and the core.
• Commonly made of varnish, resin, or insulating paper.

5. Transformer Oil (in Large Transformers)

• Acts as a coolant and insulator.
• Helps dissipate heat generated during operation and improves insulation.

6. Cooling System

• Prevents overheating of the transformer.
• Can be:
  • Air-cooled: Uses natural or forced air.
  • Oil-cooled: Uses radiators, fans, or pumps to circulate oil.

7. Tap Changer (for Voltage Regulation)

• Adjusts the transformer’s turns ratio to regulate the output voltage.
• Can be:
  • On-Load Tap Changer (OLTC): Adjusts voltage while the transformer is operating.
  • Off-Load Tap Changer: Adjusts voltage only when the transformer is disconnected.

8. Bushings

• Insulated terminals that allow electrical connections to pass safely through the transformer casing.
• Prevents electrical leakage and ensures safe operation.

9. Conservator (in Oil-Filled Transformers)

• A cylindrical oil storage tank mounted above the transformer body.
• Allows for the expansion and contraction of transformer oil due to temperature variations.

10. Breather (Silica Gel Breather)

• Removes moisture from the air entering the conservator to prevent contamination of transformer oil.
• Contains silica gel, which absorbs humidity and prevents insulation degradation.

11. Pressure Relief Device (PRD)

• A safety mechanism that releases excess pressure buildup inside the transformer due to overheating or faults.
• Prevents explosions and damage to equipment.

12. Radiators (for Cooling in Large Transformers)

• Metal fins or pipes attached to the transformer body to dissipate heat.
• Used in oil-cooled transformers to maintain temperature levels.

13. Buchholz Relay (for Fault Protection in Oil-Filled Transformers)

• A gas-actuated relay that detects internal faults such as short circuits, insulation failure, or oil leakage.
• Provides an early warning system and can trip the transformer in case of severe faults.

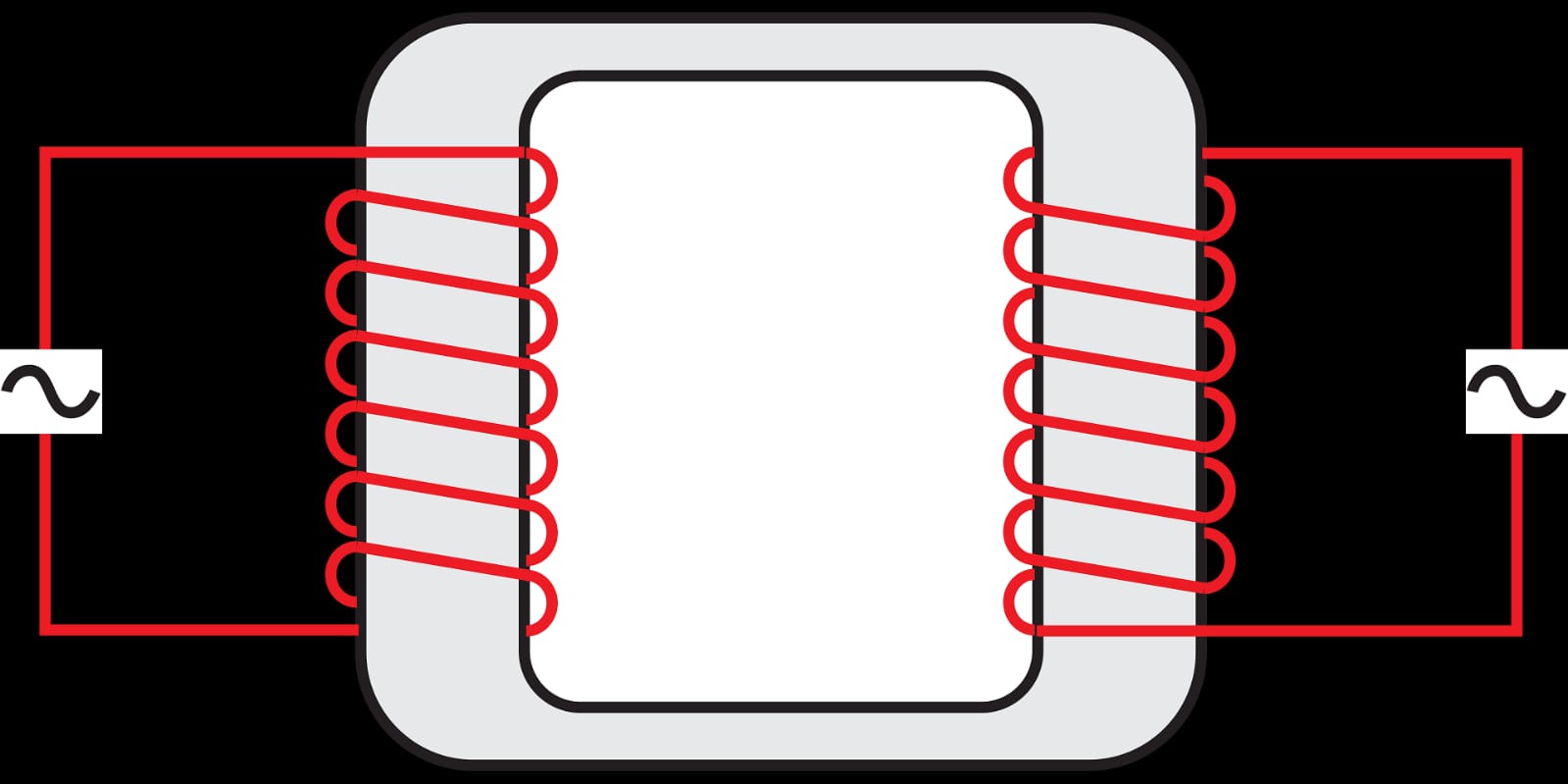

Working Principle of a Transformer

A transformer operates on the principle of electromagnetic induction to transfer electrical energy between two or more circuits without changing the frequency of the current. It consists of two primary components: the primary winding and the secondary winding, both of which are magnetically coupled through a core. Here's a detailed breakdown of its working principle:

1. AC Current in Primary Winding: The transformer’s primary winding is connected to an alternating current (AC) power supply. When an AC voltage is applied, it generates a time-varying magnetic field around the primary coil. This fluctuating magnetic field expands and contracts with the frequency of the AC supply.

2. Magnetic Flux and Core: The magnetic field generated by the primary winding passes through the core of the transformer, which is typically made of laminated iron or ferrite to reduce energy losses. The core provides a low-resistance path for the magnetic flux, ensuring efficient transfer between the primary and secondary windings.

3. Induced Voltage in Secondary Winding: As the magnetic flux passes through the core, it induces a voltage in the secondary winding, which is placed near the primary winding. According to Faraday's Law of Induction, the changing magnetic flux induces an electromotive force (EMF) in the secondary winding. The magnitude of the induced voltage depends on the rate of change of the magnetic flux and the number of turns in the secondary coil.

4. Turns Ratio and Voltage Step-Up/Step-Down: The voltage induced in the secondary winding is determined by the turns ratio of the primary to the secondary winding. The turns ratio is given by:

   $$\frac{V_s}{V_p} = \frac{N_s}{N_p}$$

   where $V_s$ and $V_p$ are the secondary and primary voltages, and $N_s$ and $N_p$ are the number of turns in the secondary and primary coils, respectively.

   • If the number of turns in the secondary coil ($N_s$) is greater than that in the primary coil ($N_p$), the transformer steps up the voltage.
   • If $N_s$ is smaller than $N_p$, the transformer steps down the voltage.

5. Energy Transfer: The electrical energy is transferred from the primary to the secondary coil through the magnetic field. However, due to conservation of energy, the power transferred remains constant (neglecting losses), meaning an increase in voltage results in a corresponding decrease in current, and vice versa.

In conclusion, a transformer efficiently transfers electrical energy between circuits by converting the input voltage to a higher or lower value, based on the turns ratio, while maintaining the same frequency. This principle of electromagnetic induction makes transformers essential in electrical power distribution systems.

Places where trasnformers are used

1. Power Transmission and Distribution: Transformers are most commonly used in electricity grids to step up voltage for long-distance transmission and step it down for distribution. At power plants, transformers step up the voltage to high levels to reduce energy loss during transmission. At substations, transformers step down the voltage to safe levels for residential, commercial, and industrial use.

2. Electricity in Homes and Buildings: Transformers are used in homes and commercial buildings to ensure that electrical appliances receive the correct voltage. They regulate voltage for devices such as air conditioners, refrigerators, microwaves, and televisions.

3. Industrial Machinery: In factories and industrial plants, transformers supply the appropriate voltage to machines that require different levels of electrical energy. They are also used in welding machines, furnaces, and other heavy-duty machinery.

4. Railways: Electric trains and railway systems rely on transformers to convert high-voltage electricity from the grid into the voltage needed to power the train engines.

5. Renewable Energy Systems: Transformers are essential in solar power plants, wind farms, and hydropower stations. They step up the voltage produced by these renewable sources to match the voltage level required by the national grid.

6. Communication Systems: Transformers are used in telecommunications and broadcasting to regulate the voltage for devices such as transmitters and receivers.

7. Electric Vehicles (EVs): In electric vehicles, transformers regulate the voltage for efficient charging of the vehicle's battery.

8. Medical Equipment: Transformers are used in medical devices like X-ray machines, MRI scanners, and hospital equipment to ensure proper voltage levels for their operation.

Transformers play a crucial role in ensuring the safe and efficient transmission, distribution, and usage of electrical energy across various industries and applications.
