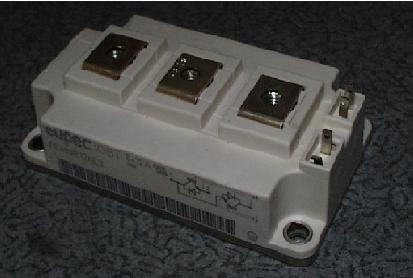

IGBT (Insulated Gate Bipolar Transistor)



Introduction to IGBT

          The Insulated Gate Bipolar Transistor (IGBT) is a crucial semiconductor device that plays a vital role in power electronics. It combines the high input impedance and fast switching speed of a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) with the high current and voltage handling capability of a BJT (Bipolar Junction Transistor). Due to its efficiency and reliability, IGBT is widely used in applications such as motor drives, renewable energy systems, industrial automation, and electric vehicles.

Basics of IGBT

          IGBT is a three-terminal device with Collector (C), Emitter (E), and Gate (G) terminals. It is a voltage-controlled switch, meaning that a small voltage applied at the gate determines whether the device is turned on or off. Unlike BJTs, which require a continuous base current for operation, IGBTs only need a small gate drive power, making them more efficient.

          IGBTs are designed to handle high power levels, with voltage ratings ranging from hundreds to thousands of volts and current ratings from tens to hundreds of amperes. Their ability to operate at high voltages and switch large currents efficiently makes them ideal for high-power applications.

Working Principle of IGBT

          The operation of an IGBT is based on its ability to switch between conduction and cutoff states. It works in two main modes:

• Turn-On (Conduction Mode) – When a positive voltage is applied to the gate relative to the emitter, a conductive channel forms, allowing current to flow from the collector to the emitter. The IGBT behaves like a low-resistance switch, minimizing power loss.

• Turn-Off (Cutoff Mode) – When the gate voltage is removed, the conduction channel disappears, and the device stops conducting. This transition is slower than a MOSFET but much faster than a BJT, balancing efficiency and performance.

          IGBTs also exhibit low conduction losses due to their BJT-like current conduction and fast switching capability similar to MOSFETs. However, they do have a drawback—turn-off time is longer than that of a MOSFET, making them less suitable for very high-frequency applications.

Importance in Power Electronics

          IGBTs are extensively used in modern power electronic systems due to their high efficiency, reliability, and ability to handle large power levels. Some key applications include:

• Electric Vehicles (EVs) – Used in inverters and motor controllers for efficient energy conversion.

• Renewable Energy Systems – Essential for converting DC power from solar panels and wind turbines into AC for grid integration.

• Industrial Automation – Used in motor drives, power supplies, and uninterruptible power systems (UPS).

Structure and Operation of IGBT

Internal Structure of IGBT

          The IGBT has a four-layer (PNPN) structure, consisting of multiple semiconductor layers arranged in a specific order. The primary components include:

• Emitter Layer (N+ Layer) – This is the topmost layer and connects to the emitter terminal.

• N- Drift Region – This region determines the voltage-blocking capability of the IGBT. A thicker drift region allows for higher voltage handling but increases resistance.

\

• P-Base Layer – It acts as the control region where the gate terminal is connected. This region is crucial for the formation of the conduction channel.

• Collector Layer (P+ Substrate) – This is the bottom layer and is responsible for injecting holes into the drift region, enhancing conductivity.

          A gate terminal is placed over an insulating oxide layer (SiO₂), similar to MOSFETs. This oxide layer electrically isolates the gate from the other regions, allowing voltage-based control.

Operation of IGBT

IGBT functions in two primary modes:

• Turn-On (Conduction Mode)

• When a positive voltage is applied to the gate relative to the emitter, an inversion layer forms in the P-base region, allowing current to flow from collector to emitter.

• The current is carried by both electrons (from the N region) and holes (from the P+ substrate), making conduction efficient with low resistance.

• Turn-Off (Cutoff Mode)

• When the gate voltage is removed, the conduction channel disappears, and the device stops conducting.

• However, due to the presence of stored charge in the drift region, IGBT turn-off is slower compared to MOSFETs.

Advantages of IGBT Over Other Power Switches – Comparison with MOSFETs and BJTs

          The Insulated Gate Bipolar Transistor (IGBT) is a widely used power semiconductor device that offers significant advantages over MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and BJTs (Bipolar Junction Transistors). By combining the high-speed switching of MOSFETs with the high current-handling capability of BJTs, IGBTs have become a preferred choice in high-power applications such as motor drives, power inverters, and industrial automation.

1. IGBT vs. MOSFET

Feature	IGBT	MOSFET
Voltage Rating	Higher (up to 3 kV or more)	Limited (typically up to 900V)
Conduction Losses	Lower for high-voltage applications	Higher due to RDS(on) resistance
Switching Speed	Moderate (slower than MOSFET)	Very fast
Control	Voltage-controlled	Voltage-controlled
Best Use Cases	High-power, high-voltage applications (e.g., industrial inverters)	Low-voltage, high-frequency applications (e.g., SMPS)

Key Advantages of IGBT Over MOSFET:

• Better efficiency at high voltages: MOSFETs suffer from increased on-state resistance (R$_{DS(on)}$)  at high voltages, leading to more conduction losses. IGBTs, with their BJT-like low conduction loss, are better suited for high-voltage applications (above 400V).

• Lower cost for high-power applications: Due to their superior conduction characteristics, IGBTs require smaller heat sinks, reducing the overall system cost.

2. IGBT vs. BJT

Feature	IGBT	BJT
Switching Speed	Faster	Slower
Gate Drive	Voltage-controlled	Current-controlled
Conduction Losses	Lower at high voltages	Higher
Thermal Stability	Better	Poorer
Best Use Cases	High-power switching (e.g., motor drives)	Low-frequency, continuous conduction applications

Key Advantages of IGBT Over BJT:

• Easier control: Unlike BJTs, which require continuous base current, IGBTs are voltage-controlled, reducing drive power requirements.

• Faster switching speed: BJTs suffer from longer switching times due to charge storage effects, whereas IGBTs have faster switching capabilities, making them more efficient.

• Lower conduction losses at high voltage: IGBTs combine the low conduction loss of BJTs with the easy drive control of MOSFETs, making them more efficient in high-power applications.

Applications of IGBT in Various Industries

1. Electric Vehicles (EVs) and Transportation

• IGBTs are used in EV inverters, which convert DC power from the battery into AC power to drive the electric motor efficiently.

• They play a key role in electric trains, metros, and hybrid vehicles, enabling efficient energy conversion and reducing power losses.

• Fast charging stations also rely on IGBTs to regulate power flow and ensure efficient charging.

2. Renewable Energy – Solar and Wind Power

• Solar inverters use IGBTs to convert DC power from solar panels into AC power for grid integration.

• In wind turbines, IGBTs help control the variable-speed operation of the generator, improving efficiency and power stability.

• These applications demand high efficiency and reliability, making IGBTs an essential choice in the green energy sector.

3. Industrial Automation and Motor Drives

• IGBTs are widely used in variable frequency drives (VFDs) to control the speed and torque of industrial motors, reducing energy consumption.

• In robotics and factory automation, IGBTs enhance efficiency and precision by enabling smooth motor control.

• They are also used in uninterruptible power supplies (UPS), ensuring stable power delivery in critical applications.

IGBT Switching Characteristics and Performance

1. Switching Speed and Time Delays

          IGBTs are designed to switch between ON (conducting) and OFF (non-conducting) states efficiently. The switching process is influenced by several key parameters:

• Turn-On Time (ton): The time taken by the IGBT to transition from OFF to ON. It consists of a short delay time and a rise time.

• Turn-Off Time (toff): The time required for the IGBT to transition from ON to OFF. It includes a delay time and fall time.

• Current Tail Effect: Unlike MOSFETs, IGBTs experience a current tail during turn-off due to the slow recombination of minority carriers, leading to increased switching losses.

          While IGBTs are generally slower than MOSFETs, modern Field-Stop (FS) IGBTs have significantly improved switching speeds, making them competitive in high-frequency applications.

2. Efficiency and Power Losses

The efficiency of an IGBT is determined by two primary losses:

• Conduction Losses: When the IGBT is ON, it exhibits a voltage drop (Vce(sat)), causing conduction losses. These losses are lower than those in MOSFETs at high voltages (>400V).

• Switching Losses: Energy is lost during the transition between ON and OFF states. Faster switching reduces these losses but may increase electromagnetic interference (EMI).

Balancing conduction and switching losses is crucial for optimizing overall efficiency in power electronics systems.

3. Power Handling Capability

          IGBTs are designed to handle high voltage (up to several kV) and large currents, making them suitable for applications like motor drives, renewable energy systems, and electric vehicles. Their ability to withstand high power makes them preferable over MOSFETs in high-voltage applications.

Challenges and Limitations of IGBT

          The Insulated Gate Bipolar Transistor (IGBT) is widely used in power electronics due to its high efficiency and ability to handle large voltages and currents. However, despite its advantages, IGBTs also have some challenges and limitations that impact their performance and application in various industries.

1. Heat Dissipation and Thermal Management

          One of the biggest challenges in IGBT operation is heat dissipation. When an IGBT switches on and off, it generates conduction and switching losses, leading to heat buildup. If not properly managed, excessive heat can damage the device and reduce its lifespan. To overcome this issue, efficient heat sinks, cooling systems, and thermal management techniques are required, increasing system complexity and cost.

2. Switching Losses and Current Tail Effect

          Although IGBTs offer lower conduction losses compared to MOSFETs at high voltages, they suffer from switching losses, especially during turn-off. The presence of minority carriers in the drift region causes a phenomenon called the current tail effect, which increases power dissipation and limits the switching frequency. This makes IGBTs less suitable for very high-frequency applications.

3. Cost and Size Constraints

          IGBTs are generally more expensive than MOSFETs and BJTs due to their complex structure and manufacturing process. The need for additional components like gate drivers, cooling systems, and protection circuits further increases the overall system cost. Additionally, IGBT modules for high-power applications are bulky, making them unsuitable for compact electronic designs.

Future Trends and Innovations in IGBT Technology

          The Insulated Gate Bipolar Transistor (IGBT) has played a crucial role in power electronics for decades, enabling efficient energy conversion in various applications. As power demands grow and technology advances, researchers and manufacturers continue to improve IGBT performance to meet the evolving needs of modern industries. Future trends in IGBT technology focus on higher efficiency, faster switching speeds, reduced losses, and integration with emerging technologies like artificial intelligence and renewable energy systems.

1. Next-Generation IGBT Materials and Designs

          Traditional IGBTs use silicon (Si) as the semiconductor material, but silicon carbide (SiC) and gallium nitride (GaN) IGBTs are gaining attention due to their superior properties. These materials offer:

• Lower switching losses – reducing power dissipation and improving efficiency.

• Higher breakdown voltage – enabling operation at higher voltages and currents.

• Faster switching speeds – reducing response time in high-frequency applications.

          These advancements help industries like electric vehicles (EVs), aerospace, and renewable energy achieve better performance and efficiency.

2. Integration with Smart and AI-Based Power Systems

          With the rise of smart grids and AI-driven power management, future IGBTs will incorporate intelligent control algorithms to optimize switching performance dynamically. AI and machine learning can analyze operating conditions and adjust IGBT switching parameters in real time, enhancing efficiency, reliability, and fault detection in power systems.

3. Improved Thermal Management and Packaging Technologies

Efficient heat dissipation remains a key challenge for IGBTs. Future innovations will focus on:

• Advanced cooling techniques such as liquid cooling and phase-change materials.

• Innovative packaging designs that enhance thermal conductivity and reduce size.

• Embedded sensors to monitor temperature and adjust performance dynamically.

          These improvements will enable compact and high-power-density applications without compromising reliability.

4. Role of IGBTs in Future Power Applications

As energy systems transition toward decarbonization and digitalization, IGBTs will play a vital role in:

• Electric vehicles (EVs) – improving battery efficiency and extending range.
• Renewable energy systems – enhancing solar inverters and wind power converters.
• Industrial automation and robotics – enabling precise motor control and power optimization.
