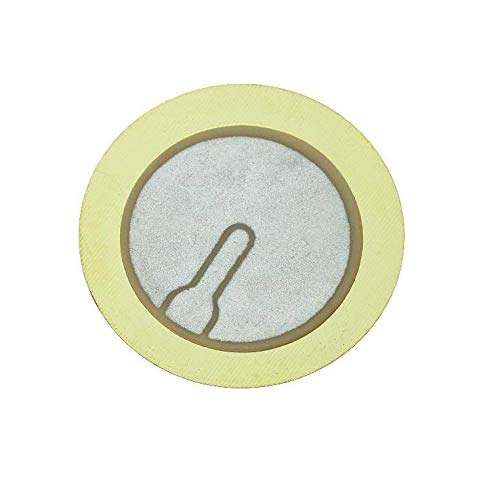

Principle of Piezoelectricity
Piezoelectricity is a fascinating phenomenon in which certain materials generate an electrical charge when subjected to mechanical stress. This unique property is widely used in sensors, actuators, and energy harvesting applications. The term piezoelectricity comes from the Greek words "piezein", meaning "to press or squeeze," and "elektron", referring to electricity.
How Piezoelectricity Works
Piezoelectric materials, such as quartz, Rochelle salt, and certain ceramics, have a special crystalline structure that lacks a center of symmetry. This structural asymmetry is key to their piezoelectric properties. In a normal, unstressed state, the positive and negative charge centers within the crystal are perfectly balanced. However, when an external force is applied, the crystal lattice deforms, causing a shift in the charge distribution. This shift results in an electrical potential difference across the material, generating an electric charge.
This process is reversible. When an electric field is applied to a piezoelectric material, it undergoes mechanical deformation. This is known as the inverse piezoelectric effect, which is used in applications like ultrasonic transducers and actuators.
Key Properties of Piezoelectric Materials
Piezoelectric materials exhibit the following properties:
- Direct Piezoelectric Effect – The generation of an electric charge in response to mechanical stress.
- Inverse Piezoelectric Effect – The ability of the material to deform when subjected to an electric field.
- High Sensitivity – Even small mechanical changes can produce measurable electrical signals.
- Frequency Stability – Quartz and other piezoelectric materials have precise resonance frequencies, making them ideal for applications like crystal oscillators in watches and electronic circuits.
Mathematical Representation
The relationship between mechanical stress and electrical charge in piezoelectric materials is described by the equation:
where:
- is the electric displacement (charge per unit area)
- d is the piezoelectric coefficient (a material-specific constant),
- T is the applied mechanical stress.
This equation shows that the charge generated is proportional to the applied force, which makes piezoelectric materials ideal for sensor applications.
Real-World Applications
The principle of piezoelectricity is used in various industries:
- Medical Devices – Ultrasound imaging uses piezoelectric transducers to generate and detect sound waves.
- Automotive Industry – Knock sensors in engines detect abnormal combustion.
- Energy Harvesting – Piezoelectric materials in floors or roads can convert vibrations into electricity.
Types of Piezoelectric Sensors
Piezoelectric sensors are widely used in various industries for measuring mechanical changes and converting them into electrical signals. These sensors operate based on the piezoelectric effect, where certain materials generate an electrical charge when subjected to mechanical stress. They are highly sensitive, durable, and capable of functioning in harsh environments. Different types of piezoelectric sensors are designed for specific applications, including accelerometers, pressure sensors, ultrasonic sensors, and force sensors.
1. Piezoelectric Accelerometers
Function: Piezoelectric accelerometers measure acceleration, vibration, and shock by detecting dynamic forces.
Working Principle: These sensors contain a piezoelectric crystal coupled with a mass. When subjected to acceleration, the mass exerts a force on the crystal, generating an electrical signal proportional to the acceleration.
Applications:
- Industrial Vibration Monitoring – Used in machines and engines to detect mechanical faults.
- Aerospace & Automotive – Deployed in aircraft and vehicle crash testing.
- Seismology – Measures ground vibrations and earthquakes.
Advantages:
- High sensitivity to small vibrations.
- No external power required for charge output models.
- Wide frequency response.
2. Piezoelectric Pressure Sensors
Function: These sensors measure pressure changes in gases or liquids by converting mechanical stress into an electrical charge.
Working Principle: The sensor consists of a diaphragm that deforms under pressure. This deformation applies stress to the piezoelectric material, producing a voltage proportional to the applied pressure.
Applications:
- Automotive Industry – Used in fuel injection and engine performance monitoring.
- Medical Devices – Blood pressure monitors and respiratory equipment.
- Aerospace – Measures altitude and air pressure in aircraft.
Advantages:
- High accuracy and fast response time.
- Operates over a wide pressure range.
- Works in extreme temperatures.
3. Piezoelectric Ultrasonic Sensors
Function: These sensors generate and detect ultrasonic waves for distance measurement, object detection, and imaging applications.
Working Principle: A piezoelectric crystal is excited by an electric pulse, causing it to vibrate and emit ultrasonic waves. When these waves hit an object, they reflect back, and the sensor calculates the distance based on the time taken for the waves to return.
Applications:
- Medical Imaging – Used in ultrasound machines for diagnosing internal body conditions.
- Industrial Automation – Object detection and level measurement in manufacturing.
- Robotics & Automotive – Parking assistance and obstacle detection in self-driving cars.
Advantages:
- Non-contact sensing, making it suitable for delicate applications.
- Works well in harsh environments, including underwater.
- High precision and reliability.
4. Piezoelectric Force Sensors
Function: These sensors measure force, strain, or impact in mechanical systems.
Working Principle: When a force is applied to the sensor, the piezoelectric element generates an electrical signal proportional to the force magnitude.
Applications:
- Manufacturing & Robotics – Used in precision machining and automated force control.
- Sports Science – Measures athlete performance by detecting impact forces.
- Biomedical Devices – Used in prosthetics and rehabilitation equipment.
Advantages:
- High response speed to dynamic forces.
- Compact and lightweight.
- Can measure both tension and compression forces.
Other Specialized Piezoelectric Sensors
Apart from the main types, several specialized piezoelectric sensors exist for unique applications:
- Piezoelectric Strain Sensors – Used in structural health monitoring to detect stress in bridges and buildings.
- Piezoelectric Torque Sensors – Measure torque in rotating shafts for automotive and industrial applications.
- Piezoelectric Gas Sensors – Detect gas composition changes by measuring pressure fluctuations.
Applications of Piezoelectric Sensors
Piezoelectric sensors are widely used across multiple industries due to their ability to convert mechanical stress into electrical signals. Their high sensitivity, durability, and compact size make them essential for various applications. The most significant industries that benefit from piezoelectric sensors include healthcare, aerospace, automotive, and consumer electronics.
1. Healthcare Industry
Piezoelectric sensors play a crucial role in medical devices, ensuring accurate diagnostics and patient monitoring.
Key Applications:
- Ultrasound Imaging - Piezoelectric transducers generate and detect high-frequency sound waves to create images of internal body structures. This is widely used in pregnancy monitoring, cardiology, and diagnostics.
- Medical Implants & Prosthetics – These sensors help in motion sensing for artificial limbs, ensuring real-time feedback.
- Blood Pressure Monitors & Respiratory Devices – Piezoelectric pressure sensors measure the pressure of blood flow and detect breathing patterns in ventilators and CPAP machines.
Advantages:
- Non-invasive and highly accurate.
- Reliable and responsive for real-time monitoring.
2. Aerospace Industry
In aerospace applications, reliability and precision are critical, making piezoelectric sensors an ideal choice for monitoring structural integrity and performance.
Key Applications:
- Vibration Monitoring in Aircraft Engines – Detects mechanical imbalances and potential failures in turbines and jet engines.
- Structural Health Monitoring – Piezoelectric strain sensors assess stress and fatigue in aircraft components, ensuring safe operation.
- Altitude & Airflow Measurement – Pressure sensors help measure altitude changes and airflow dynamics in aircraft systems.
Advantages:
- Works under extreme temperatures and high-pressure conditions.
- Provides real-time data for predictive maintenance.
3. Automotive Industry
Modern vehicles rely on piezoelectric sensors for safety, performance optimization, and efficiency.
Key Applications:
- Knock Sensors in Engines – Detects abnormal combustion (engine knock) and optimizes fuel injection timing.
- Airbag Deployment Systems – Piezoelectric impact sensors trigger airbags during collisions, ensuring passenger safety.
- Tire Pressure Monitoring – Measures tire pressure in real-time, improving road safety.
- Vibration & Noise Detection – Helps reduce unwanted vibrations and noise inside vehicles for better driving comfort.
Advantages:
- Enhances vehicle safety and performance.
- Enables real-time monitoring for preventive maintenance.
4. Consumer Electronics
Piezoelectric sensors are embedded in many everyday devices, making technology more responsive and interactive.
Key Applications:
- Touchscreens & Haptic Feedback – Used in smartphones and gaming consoles to provide tactile feedback when touched.
- Microphones & Speakers – Converts sound waves into electrical signals and vice versa, improving audio quality in headsets and smartphones.
- Wearable Devices – Fitness trackers and smartwatches use piezoelectric sensors to monitor heart rate and physical activity.
Advantages:
- Energy-efficient and compact.
- Enhances user experience with improved touch and sound response.
Advantages and Limitations of Piezoelectric Sensors
Advantages of Piezoelectric Sensors
1. High Sensitivity and Fast Response
Piezoelectric sensors can detect even the smallest mechanical changes with high precision. They have a rapid response time, making them ideal for applications requiring real-time monitoring, such as vibration analysis, impact detection, and pressure sensing.
2. No External Power Supply Required
Unlike other types of sensors, piezoelectric sensors generate their own electrical signal when subjected to mechanical stress. This eliminates the need for an external power source, making them energy-efficient and suitable for remote or battery-powered applications.
3. Durability and Long Lifespan
Piezoelectric sensors are highly durable and can withstand extreme environmental conditions such as high temperatures, high pressure, and harsh vibrations. This makes them useful in industries like aerospace, automotive, and industrial automation.
4. Compact and Lightweight
Piezoelectric sensors are small in size and lightweight, making them easy to integrate into compact electronic devices. This feature is crucial in applications such as medical implants, wearable technology, and precision instrumentation.
5. Wide Frequency Range
These sensors can operate across a broad frequency spectrum, from low-frequency strain measurements to high-frequency ultrasonic applications. This versatility makes them suitable for a wide range of industrial and scientific applications.
Limitations of Piezoelectric Sensors
1. Temperature Sensitivity
Piezoelectric sensors can be affected by temperature variations, which may alter their electrical output. Some piezoelectric materials, such as quartz, are more stable, but others may require temperature compensation techniques to ensure accurate readings.
2. Inability to Measure Static or Low-Frequency Signals
One of the major limitations of piezoelectric sensors is their inability to measure static (DC) forces or very low-frequency signals. Since the charge generated by these sensors dissipates over time, they are primarily used for dynamic measurements such as vibrations and impact forces.
3. Requires Signal Conditioning
The electrical signals generated by piezoelectric sensors are often weak and require amplification and conditioning before they can be processed. Signal conditioning circuits, such as charge amplifiers or impedance converters, add complexity and cost to the system.
4. Fragility of Some Piezoelectric Materials
Certain piezoelectric materials, such as ceramics, can be brittle and prone to cracking under excessive mechanical stress. Proper mounting and handling are required to prevent damage and ensure longevity.
5. Cost Considerations
High-quality piezoelectric sensors can be expensive, especially when used in specialized applications requiring high precision and stability. This cost factor may limit their use in budget-sensitive projects.
Future Trends and Innovations in Piezoelectric Sensor Technology
Piezoelectric sensor technology is rapidly evolving, driven by advancements in materials, miniaturization, and new applications in the Internet of Things (IoT), smart devices, and wearable technology. These innovations are making piezoelectric sensors more efficient, versatile, and widely applicable across industries.
1. Advanced Piezoelectric Materials
The development of new piezoelectric materials is enhancing sensor performance, efficiency, and durability.
Key Innovations:
- Flexible Piezoelectric Materials – Researchers are developing polymer-based and nanostructured piezoelectric materials that are flexible, lightweight, and highly sensitive. These materials are ideal for wearable sensors and biomedical applications.
- Lead-Free Piezoelectric Ceramics – Traditional piezoelectric ceramics contain lead (such as PZT), which poses environmental concerns. New lead-free alternatives, such as Barium Titanate (BaTiO₃) and Sodium Potassium Niobate (KNN), offer sustainable and eco-friendly options.
- Graphene and Nanomaterial Integration – The use of graphene and other nanomaterials enhances conductivity, sensitivity, and miniaturization, enabling high-performance sensors for nano-scale applications.
2. Miniaturization and Integration with MEMS
Micro-electromechanical systems (MEMS) technology is enabling the development of ultra-small piezoelectric sensors with enhanced capabilities.
Benefits of MEMS-based Piezoelectric Sensors:
- Ultra-compact size allows integration into microelectronics and wearable devices.
- Low power consumption makes them ideal for battery-operated systems.
- High precision and reliability support medical diagnostics and industrial automation.
Miniaturized piezoelectric sensors are being embedded in smartphones, hearing aids, fitness trackers, and biomedical implants to improve monitoring and diagnostics.
3. IoT and Smart Device Applications
The rise of IoT is expanding the role of piezoelectric sensors in smart cities, industrial automation, and real-time monitoring systems.
Emerging Applications:
- Self-Powered IoT Sensors – Piezoelectric energy harvesting enables sensors to generate power from vibrations, eliminating the need for external batteries in IoT networks.
- Smart Wearables – Piezoelectric sensors in smartwatches and fitness bands monitor heart rate, posture, and movement with high precision.
- Structural Health Monitoring – Wireless piezoelectric sensors detect stress and damage in bridges, buildings, and aircraft, improving safety and maintenance efficiency.
